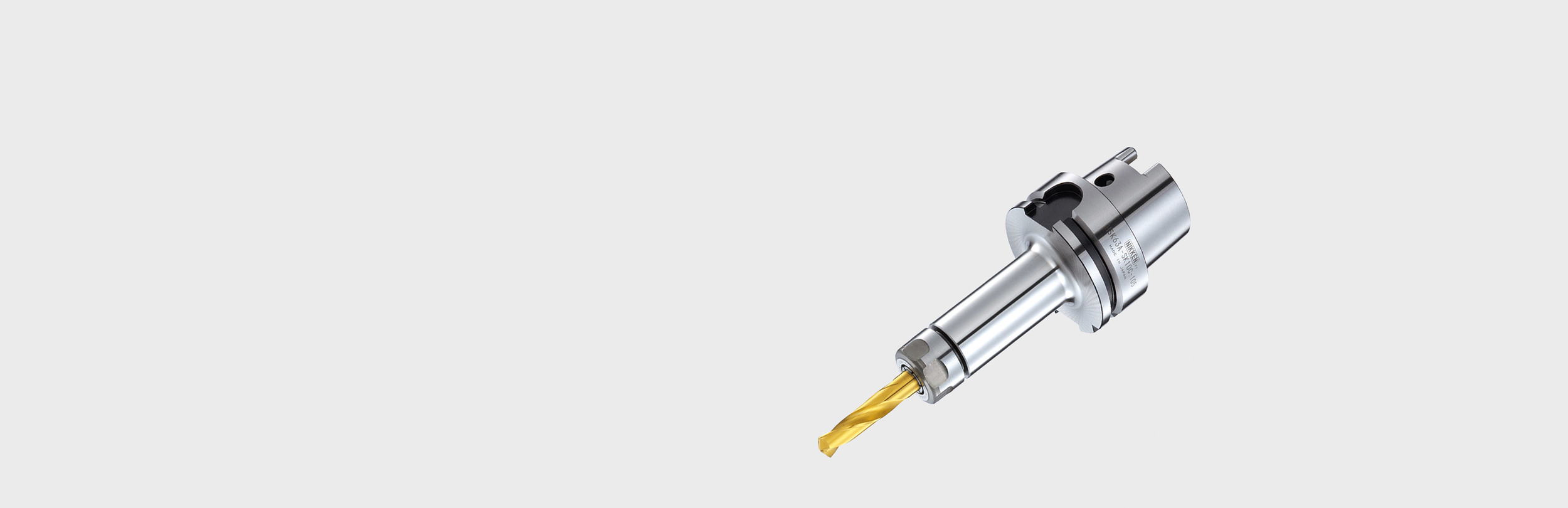

NIKKEN Slim Chuck, standart ve hassas pensli tutucu çözümümüzdür.

Yapı, üç parçadan oluşur -molibden kaplı ana gövde, dış çaptaki ince diş ve iç konik taşlanmış, benzersiz TiN kaplı rondela, taşlanmış ince dişli sıkıma somunu, ve son olarak hassas pens. Hem pens hem de gövde 8 derece koniktir. Rakip çözümleri (ER sistemleri ve benzerleri) normal olarak 16 derecelik bir konikliğe sahiptir, bu nedenle gerçekte Slim Chuck'ın hassasiyet ve kavrama yeteneğinin yarısından daha azını sağlar.

İşlem çok basittir. Önce, pens somuna takılır ve birlikte tutucunun gövdesine vidalanır. Kesici takım daha sonra pensin deliğine istenen uzunlukta takılır ve saat yönünde sıkılır. Normalde sıkma işlemi, elle başlar ve ardından uygun anahtarla, somunu tutucunun dişi kadar yukarı doğru hareket ettirir ve çok etkili ve hassas bir şekilde kesici takımı tutması için pensi daraltır. Slim Chuck’ın doğru şekilde sıkıldığını anlamak, genel olarak hissedilmekle beraber, her bir Slim Chuck boyutu için,özellikle önerilen sıkma torkumuza ulaşmak için tork anahtarları mevcuttur.

  • Salgı garantisi Çap x 4 mesafede 5µm dur. (3µm luk hassas pensler ile)

  • TiN Kaplı Rondela

  • 8º Pens Sistemi

  • Eksenel yönde iterek sıkma garantisi

  • 40,000 d/d ya kadar çalışabilme opsiyonu G2.5 balanslı

  • Jet soğutma opsiyonu

"Slim Chuck mevcut birçok şaft ebatları, uzunlukları ve konfigürasyonları ile tüm işlemlere uyacak şekilde mevcuttur. Slim Chuck gövde şekli iki konfigürasyonda mevcuttur: Standart paralel SK ve harici olarak konik SKT. Bu iki form, birçok uygulamaya ve gereksinime uyacak şekilde çeşitlilik sağlar.

Slim Chuck'ın kapsamı, ayrıca, bu durumda rijitlik ve güvenilirlik konusunda temel tutucu haline gelen, bir Rulmanlı tutucu ile birlikte 'düz şaftlı' Slim Chuck kullanılarak, NIKKEN'in Rulmanlı tutucusuna da genişletilebilir."

Bazı ürünler için ortak olduğu gibi, standart Slim Chuck, düz / kanca tipi bir anahtar gerektiren çentikli bir somuna sahiptir ve "yüksek hız" çeşidi, "GH Saplı" makaralı rulman anahtarına uygundur. Rulmanlı Tutucunun aksine Slim Chuck kesinlikle bir pens gerektirir. Bir pens ve somunun seçilmesi ve gövdeye takılmasını gerektirir (doğrudan takım sıkma mümkün değildir).

Takım sapına bağlı olarak Slim Chuck, 6 boyutta mevcuttur:

  • SK6 - 0,7 mm ila 6,0 mm çaplara uygun.
  • SK10 -1.75mm ila 10.0 mm çaplara uygun.
  • SK13 -2.75mm ila 13.0 mm çaplara uygun.
  • SK16 -2.75mm ila 16.0 mm çaplara uygun.
  • SK20 -3.5mm ila 20.0 mm çaplara uygun.
  • SK25 -7.5mm ila 25.4 mm çaplara uygun.

Slim Chuck şu anda hem hassasiyet hem de soğutucu ayarı için ince ayarlı olarak seçilebilecek 4 tip 8 derece pense sahiptir. Bunlar:

  • Standart Pens - Örnek SK16-16 (Maksimum 0.5mm boşluk ve 5 mikron hassasiyet).
  • Hassas Pens- Örnek SK16-16P (Maksimum 0,5 mm boşluk ve 3 mikron hassasiyet).
  • Frezeleme Pensi - Örnek SK16-16A (Boşluksuz ve 3 mikron hassasiyet).
  • YENİ Mekanik sızdırmazlık donanımlı, Soğutucu için Pens - Örnek SK16-16AC (Soğutucu delikli kesiciler için tasarlanmıştır. Boşluksuz ve 3 mikron hassasiyet).

Uygun 'Jetter' somunu ve kapağı seçilerek, kesici tipine ve gereksinimine bağlı soğutucu tedarikini kendi prosesinize uyacak şekilde ayarlayabilir, standart, hassas ve frezeleme SK penseleri, 'Jetter' soğutma sistemimiz ile birlikte de kullanabilirsiniz.

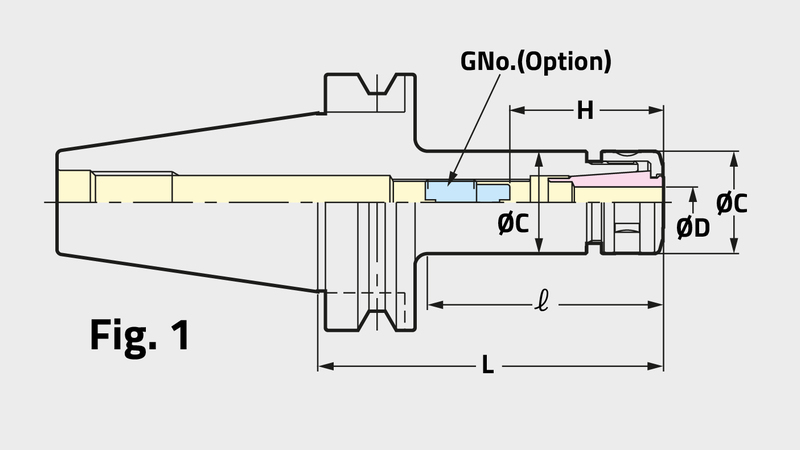

KAPASİTE 'D' KOD Sıkma Boyu 'H' UZUNLUK 'L' SOMUN / UÇ ÇAPI 'C' Sap Ölçüsü
BT30-SK10-120 1.75-10.0 SK10 30-50 120 27.5 BT30
BT30-SK10-45 1.75-10.0 SK10 30-50 45 27.5 BT30
BT30-SK10-60 1.75-10.0 SK10 30-50 60 27.5 BT30
BT30-SK10-75 1.75-10.0 SK10 30-50 75 27.5 BT30
BT30-SK10-90 1.75-10.0 SK10 30-50 90 27.5 BT30
BT30-SK13-120 2.75-13.0 SK13 31-65 120 33 BT30
BT30-SK13-60 2.75-13.0 SK13 31-50 60 33 BT30
BT30-SK13-75 2.75-13.0 SK13 31-65 75 33 BT30
BT30-SK13-90 2.75-13.0 SK13 31-65 90 33 BT30
BT30-SK16-120 2.75-16.0 SK16 40-70 120 40 BT30
BT30-SK16-60 2.75-16.0 SK16 45-60 60 40 BT30
BT30-SK16-75 2.75-16.0 SK16 45-65 75 40 BT30
BT30-SK16-90 2.75-16.0 SK16 45-65 90 40 BT30
BT30-SK20-60 3.5-20.0 SK20 65-70 60 48.5 BT30
BT30-SK20-75 3.5-20.0 SK20 70-75 75 48.5 BT30
BT30-SK20-90 3.5-20.0 SK20 65-75 90 48.5 BT30
BT30-SK25-90 7.5-25.4 SK25 55-75 90 55 BT30
BT30-SK6-120 0.7-6.0 SK6 21-35 120 19.5 BT30
BT30-SK6-60 0.7-6.0 SK6 21-35 60 19.5 BT30
BT30-SK6-90 0.7-6.0 SK6 21-35 90 19.5 BT30
BT30-SZF10-90 1.75-10.0 SZF10 30-50 90 27.5 BT30
BT30-SZF16-105 2.75-16.0 SZF16 45-65 105 40 BT30
BT30-SZF6-90 0.7-6.0 SZF6 21-35 90 19.5 BT30
BT40-SK10-120 1.75-10.0 SK10 30-50 120 27.5 BT40
BT40-SK10-150 1.75-10.0 SK10 30-50 150 27.5 BT40
BT40-SK10-180 1.75-10.0 SK10 30-50 180 27.5 BT40
BT40-SK10-200 1.75-10.0 SK10 30-50 200 27.5 BT40
BT40-SK10-250 1.75-10.0 SK10 30-50 250 27.5 BT40
BT40-SK10-60 1.75-10.0 SK10 30-50 60 27.5 BT40
BT40-SK10-75 1.75-10.0 SK10 30-50 75 27.5 BT40
BT40-SK10-90 1.75-10.0 SK10 30-50 90 27.5 BT40
BT40-SK13-120 2.75-13.0 SK13 31-65 120 33 BT40
BT40-SK13-150 2.75-13.0 SK13 31-65 150 33 BT40
BT40-SK13-180 2.75-13.0 SK13 31-65 180 33 BT40
BT40-SK13-200 2.75-13.0 SK13 31-65 200 33 BT40
BT40-SK13-250 2.75-13.0 SK13 31-65 250 33 BT40
BT40-SK13-60 2.75-13.0 SK13 31-65 60 33 BT40
BT40-SK13-75 2.75-13.0 SK13 31-65 75 33 BT40
BT40-SK13-90 2.75-13.0 SK13 31-65 90 33 BT40
BT40-SK16-120 2.75-16.0 SK16 45-60 120 40 BT40
BT40-SK16-150 2.75-16.0 SK16 45-60 150 40 BT40
BT40-SK16-180 2.75-16.0 SK16 45-60 180 40 BT40
BT40-SK16-200 2.75-16.0 SK16 45-60 200 40 BT40
BT40-SK16-250 2.75-16.0 SK16 45-60 250 40 BT40
BT40-SK16-60 2.75-16.0 SK16 50-65 60 40 BT40
BT40-SK16-75 2.75-16.0 SK16 40-67 75 40 BT40
BT40-SK16-90 2.75-16.0 SK16 45-60 90 40 BT40
BT40-SK20-120 3.5-20.0 SK20 47-80 120 48.5 BT40
BT40-SK20-60 3.5-20.0 SK20 47-60 60 48.5 BT40
BT40-SK20-75 3.5-20.0 SK20 47-70 75 48.5 BT40
BT40-SK20-90 3.5-20.0 SK20 47-80 90 48.5 BT40
BT40-SK25-120 7.5-25.4 SK25 55-85 120 55 BT40
BT40-SK25-75 7.5-25.4 SK25 55-75 75 55 BT40
BT40-SK25-90 7.5-25.4 SK25 55-75 90 55 BT40
BT40-SK6-120 0.7-6.0 SK6 21-35 120 19.5 BT40
BT40-SK6-150 0.7-6.0 SK6 21-35 150 19.5 BT40
BT40-SK6-60 0.7-6.0 SK6 21-35 60 19.5 BT40
BT40-SK6-90 0.7-6.0 SK6 21-35 90 19.5 BT40
BT40-SZF10-150 1.75-10.0 SZF10 30-50 150 27.5 BT40
BT40-SZF10-90 1.75-10.0 SZF10 30-50 90 27.5 BT40
BT40-SZF16-150 2.75-16.0 SZF16 45-65 150 40 BT40
BT40-SZF16-90 2.75-16.0 SZF16 45-65 90 40 BT40
BT40-SZF25-120 7.5-25.4 SZF25 55-85 120 55 BT40
BT40-SZF25-150 7.5-25.4 SZF25 55-85 150 55 BT40
BT40-SZF6-150 0.7-6.0 SZF6 21-35 150 19.5 BT40
BT40-SZF6-90 0.7-6.0 SZF6 21-35 90 19.5 BT40
BT50-SK10-105 1.75-10.0 SK10 30-50 105 27.5 BT50
BT50-SK10-135 1.75-10.0 SK10 30-50 135 27.5 BT50
BT50-SK10-165 1.75-10.0 SK10 30-50 165 27.5 BT50
BT50-SK10-200 1.75-10.0 SK10 30-50 200 27.5 BT50
BT50-SK10-225 1.75-10.0 SK10 30-50 225 27.5 BT50
BT50-SK10-250 1.75-10.0 SK10 30-50 250 27.5 BT50
BT50-SK10-300 1.75-10.0 SK10 30-50 300 27.5 BT50
BT50-SK13-105 2.75-13.0 SK13 31-65 105 33 BT50
BT50-SK13-135 2.75-13.0 SK13 31-65 135 33 BT50
BT50-SK13-165 2.75-13.0 SK13 31-65 165 33 BT50
BT50-SK13-200 2.75-13.0 SK13 31-65 200 33 BT50
BT50-SK13-250 2.75-13.0 SK13 31-65 250 33 BT50
BT50-SK13-300 2.75-13.0 SK13 31-65 300 33 BT50
BT50-SK16-105 2.75-16.0 SK16 45-70 105 40 BT50
BT50-SK16-135 2.75-16.0 SK16 45-70 135 40 BT50
BT50-SK16-165 2.75-16.0 SK16 45-70 165 40 BT50
BT50-SK16-200 2.75-16.0 SK16 45-70 200 40 BT50
BT50-SK16-250 2.75-16.0 SK16 45-70 250 40 BT50
BT50-SK16-300 2.75-16.0 SK16 45-70 300 40 BT50
BT50-SK20-105 3.5-20.0 SK20 47-80 105 48.5 BT50
BT50-SK20-135 3.5-20.0 SK20 47-80 135 48.5 BT50
BT50-SK20-165 3.5-20.0 SK20 47-80 165 48.5 BT50
BT50-SK20-250 3.5-20.0 SK20 47-80 250 48.5 BT50
BT50-SK20-300 3.5-20.0 SK20 47-80 300 48.5 BT50
BT50-SK25-105 7.5-25.4 SK25 50-85 135 55 BT50
BT50-SK25-135 7.5-25.4 SK25 50-85 135 55 BT50
BT50-SK25-165 7.5-25.4 SK25 50-85 165 55 BT50
BT50-SK25-200 7.5-25.4 SK25 50-85 200 55 BT50
BT50-SK25-250 7.5-25.4 SK25 50-85 250 55 BT50
BT50-SK25-300 7.5-25.4 SK25 50-85 300 55 BT50
BT50-SK6-135 0.7-6.0 21-35 135 19.5 BT50
BT50-SK6-165 0.7-6.0 21-35 165 19.5 BT50
BT50-SK6-200 0.7-6.0 21-35 200 19.5 BT50
BT50-SZF10-105 1.75-10.0 SZF10 30-50 105 27.5 BT50
BT50-SZF10-165 1.75-10.0 SZF10 30-50 165 27.5 BT50
BT50-SZF16-105 2.75-16.0 SZF16 45-65 105 40 BT50
BT50-SZF16-165 2.75-16.0 SZF16 45-65 165 40 BT50
BT50-SZF25-135 7.5-25.4 SZF25 55-85 135 55 BT50
BT50-SZF25-165 7.5-25.4 SZF25 55-85 165 55 BT50
BT50-SZF6-105 0.7-6.0 SZF6 21-35 105 19.5 BT50
BT50-SZF6-165 0.7-6.0 SZF6 21-35 165 19.5 BT50
HSK100A-SK10C-105 1.75-10.0 SK10C 33-41 105 27.5 HSK100A
HSK100A-SK10C-120 1.75-10.0 SK10C 33-41 120 27.5 HSK100A
HSK100A-SK10C-150 1.75-10.0 SK10C 33-41 150 27.5 HSK100A
HSK100A-SK10C-200 1.75-10.0 SK10C 33-41 200 27.5 HSK100A
HSK100A-SK13-105 2.75-13.0 SK13 63 105 33 HSK100A
HSK100A-SK13C-120 2.75-13.0 SK13C 39-51 120 33 HSK100A
HSK100A-SK13C-150 2.75-13.0 SK13C 39-51 150 33 HSK100A
HSK100A-SK13C-200 2.75-13.0 SK13C 39-51 200 33 HSK100A
HSK100A-SK16-105 2.75-16.0 SK16 45-60 105 40 HSK100A
HSK100A-SK16C-120 2.75-16.0 SK16C 45-52 120 40 HSK100A
HSK100A-SK16C-150 2.75-16.0 SK16C 45-52 150 40 HSK100A
HSK100A-SK16C-200 2.75-16.0 SK16C 45-52 200 40 HSK100A
HSK100A-SK20C-120 3.5-20.0 SK20C 50-55 120 48.5 HSK100A
HSK100A-SK20C-150 3.5-20.0 SK20C 47-63 150 48.5 HSK100A
HSK100A-SK20C-200 3.5-20.0 SK20C 47-63 200 48.5 HSK100A
HSK100A-SK25-120 7.5-25.4 SK25 55-75 120 55 HSK100A
HSK100A-SK25C-145 7.5-25.4 SK25C 60-65 145 55 HSK100A
HSK100A-SK6C-105 0.7-6.0 SK6C 26-31 105 19.5 HSK100A
HSK100A-SZF10C-150 1.75-10.0 SZF10C 35-41 150 27.5 HSK100A
HSK100A-SZF16C-150 2.75-16.0 SZF16C 45-57 150 40 HSK100A
HSK100A-SZF25C-150 7.5-25.4 SZF25C 60-65 150 55 HSK100A
HSK100A-SZF6C-120 0.7-6.0 SZF6C 26-31 120 19.5 HSK100A
HSK40A-SK10-60 1.75-10.0 SK10 40 60 27.5 HSK40A
HSK40A-SK10-75 1.75-10.0 SK10 29-36 75 27.5 HSK40A
HSK40A-SK10C-100 1.75-10.0 SK10C 33-41 100 27.5 HSK40A
HSK40A-SK13-75 2.75-13.0 SK13 55 75 33 HSK40A
HSK40A-SK13C-120 2.75-13.0 SK13C 39-51 120 33 HSK40A
HSK40A-SK16-120 2.75-16.0 SK16 45-52 120 40 HSK40A
HSK40A-SK16-80 2.75-16.0 SK16 60 80 40 HSK40A
HSK40A-SK6-60 0.7-6.0 SK6 40 60 19.5 HSK40A
HSK40A-SK6C-80 0.7-6.0 SK6C 26-31 80 19.5 HSK40A
HSK40A-SZF10C-105 1.75-10.0 SZF10C 35-41 105 27.5 HSK40A
HSK40A-SZF16C-120 2.75-16.0 SZF16C 45-57 120 40 HSK40A
HSK40A-SZF6C-105 0.7-6.0 SZF6C 26-31 105 19.5 HSK40A
HSK50A-SK10-60 1.75-10.0 SK10 35 60 27.5 HSK50A
HSK50A-SK10C-105 1.75-10.0 SK10C 35-41 105 27.5 HSK50A
HSK50A-SK10C-90 1.75-10.0 SK10C 35-41 90 27.5 HSK50A
HSK50A-SK13-105 2.75-13.0 SK13 31-47 105 33 HSK50A
HSK50A-SK13-70 2.75-13.0 SK13 47 70 33 HSK50A
HSK50A-SK13C-120 2.75-13.0 SK13C 39-51 120 33 HSK50A
HSK50A-SK16-105 2.75-16.0 SK16 50-58 105 40 HSK50A
HSK50A-SK16-80 2.75-16.0 SK16 52 80 40 HSK50A
HSK50A-SK16C-120 2.75-16.0 SK16C 45-52 120 40 HSK50A
HSK50A-SK6-60 0.7-6.0 SK6 37 60 19.5 HSK50A
HSK50A-SK6C-80 0.7-6.0 SK6C 26-31 80 19.5 HSK50A
HSK50A-SZF10C-120 1.75-10.0 SZF10C 35-41 120 27.5 HSK50A
HSK50A-SZF16C-135 2.75-16.0 SZF16C 45-57 135 40 HSK50A
HSK50A-SZF25C-135 7.5-25.4 SZF25C 60-65 135 55 HSK50A
HSK50A-SZF6C-120 0.7-6.0 SZF6C 26-31 120 19.5 HSK50A
HSK63A-SK10-60 1.75-10.0 SK10 35 60 27.5 HSK63A
HSK63A-SK10C-105 1.75-10.0 SK10C 33-41 105 27.5 HSK63A
HSK63A-SK10C-120 1.75-10.0 SK10C 33-41 120 27.5 HSK63A
HSK63A-SK10C-135 1.75-10.0 SK10C 33-41 135 27.5 HSK63A
HSK63A-SK10C-150 1.75-10.0 SK10C 33-41 150 27.5 HSK63A
HSK63A-SK13-105 2.75-13.0 SK13 31-47 105 33 HSK63A
HSK63A-SK13-70 2.75-13.0 SK13 45 70 33 HSK63A
HSK63A-SK13C-120 2.75-13.0 SK13C 39-51 120 33 HSK63A
HSK63A-SK13C-150 2.75-13.0 SK13C 39-51 150 33 HSK63A
HSK63A-SK16-105 2.75-16.0 SK16 50-58 105 40 HSK63A
HSK63A-SK16-80 2.75-16.0 SK16 52 80 40 HSK63A
HSK63A-SK16C-120 2.75-16.0 SK16C 45-52 120 40 HSK63A
HSK63A-SK16C-150 2.75-16.0 SK16C 45-57 150 40 HSK63A
HSK63A-SK20-105 3.5-20.0 SK20 50-57 105 48.5 HSK63A
HSK63A-SK20-90 3.5-20.0 SK20 59 90 48.5 HSK63A
HSK63A-SK20C-120 3.5-20.0 SK20C 50-55 120 48.5 HSK63A
HSK63A-SK20C-135 3.5-20.0 SK20C 50-55 135 48.5 HSK63A
HSK63A-SK25-90 7.5-25.4 SK25 63 90 55 HSK63A
HSK63A-SK25C-135 7.5-25.4 SK25C 63 135 60-65 HSK63A
HSK63A-SK6-60 0.7-6.0 SK6 38 60 19.5 HSK63A
HSK63A-SK6C-100 0.7-6.0 SK6C 26-31 100 19.5 HSK63A
HSK63A-SK6C-120 0.7-6.0 SK6C 26-31 120 19.5 HSK63A
HSK63A-SK6C-150 0.7-6.0 SK6C 26-31 150 19.5 HSK63A
HSK63A-SZF10C-105 1.75-10.0 SZF10C 35-41 105 27.5 HSK63A
HSK63A-SZF10C-150 1.75-10.0 SZF10C 35-41 150 27.5 HSK63A
HSK63A-SZF16C-150 2.75-16.0 SZF16C 45-57 150 40 HSK63A
HSK63A-SZF25C-135 7.5-25.4 SZF25C 60-65 135 55 HSK63A
HSK63A-SZF6C-120 0.7-6.0 SZF6C 26-31 120 19.5 HSK63A
IT40-SK10-120 1.75-10.0 SK10 30-50 120 27.5 IT40
IT40-SK10-150 1.75-10.0 SK10 30-50 150 27.5 IT40
IT40-SK10-180 1.75-10.0 SK10 30-50 180 27.5 IT40
IT40-SK10-60 1.75-10.0 SK10 30-50 60 27.5 IT40
IT40-SK10-90 1.75-10.0 SK10 30-50 90 27.5 IT40
IT40-SK13-120 2.75-13.0 SK13 31-65 120 33 IT40
IT40-SK13-150 2.75-13.0 SK13 31-65 150 33 IT40
IT40-SK13-180 2.75-13.0 SK13 31-65 180 33 IT40
IT40-SK13-60 2.75-13.0 SK13 31-65 60 33 IT40
IT40-SK13-90 2.75-13.0 SK13 31-65 90 33 IT40
IT40-SK16-120 2.75-16.0 SK16 45-70 120 40 IT40
IT40-SK16-120 2.75-16.0 SK16 45-70 120 40 IT40
IT40-SK16-150 2.75-16.0 SK16 45-70 150 40 IT40
IT40-SK16-180 2.75-16.0 SK16 45-70 180 40 IT40
IT40-SK16-60 2.75-16.0 SK16 50-65 60 40 IT40
IT40-SK16-90 2.75-16.0 SK16 45-70 90 40 IT40
IT40-SK20-120 3.5-20.0 SK20 47-80 120 48.5 IT40
IT40-SK20-90 3.5-20.0 SK20 47-80 90 48.5 IT40
IT40-SK25-120 7.5-25.4 SK25 55-75 120 55 IT40
IT40-SK25-90 7.5-25.4 SK25 55-75 90 55 IT40
IT40-SK6-120 0.7-6.0 SK6 21-35 120 19.5 IT40
IT40-SK6-150 0.7-6.0 SK6 21-35 150 19.5 IT40
IT40-SK6-60 0.7-6.0 SK6 21-35 60 19.5 IT40
IT40-SK6-90 0.7-6.0 SK6 21-35 90 19.5 IT40
IT40-SZF10-120 1.75-10.0 SZF10 30-50 120 27.5 IT40
IT40-SZF10-150 1.75-10.0 SZF10 30-50 150 27.5 IT40
IT40-SZF16-120 2.75-16.0 SZF16 45-65 120 40 IT40
IT40-SZF16-150 2.75-16.0 SZF16 45-65 150 40 IT40
IT40-SZF25-120 7.5-25.4 SZF25 55-85 120 55 IT40
IT40-SZF25-150 7.5-25.4 SZF25 55-85 150 55 IT40
IT40-SZF6-150 0.7-6.0 SZF6 21-35 150 19.5 IT40
IT40-SZF6-90 0.7-6.0 SZF6 21-35 90 19.5 IT40
IT50-SK10-105 1.75-10.0 SK10 30-50 105 27.5 IT50
IT50-SK10-135 1.75-10.0 SK10 30-50 135 27.5 IT50
IT50-SK10-165 1.75-10.0 SK10 30-50 165 27.5 IT50
IT50-SK10-200 1.75-10.0 SK10 30-50 200 27.5 IT50
IT50-SK13-105 2.75-13.0 SK13 31-65 105 33 IT50
IT50-SK13-135 2.75-13.0 SK13 31-65 135 33 IT50
IT50-SK13-165 2.75-13.0 SK13 31-65 165 33 IT50
IT50-SK13-200 2.75-13.0 SK13 31-65 200 33 IT50
IT50-SK16-105 2.75-16.0 SK16 40-70 105 40 IT50
IT50-SK16-135 2.75-16.0 SK16 40-70 135 40 IT50
IT50-SK16-165 2.75-16.0 SK16 40-70 165 40 IT50
IT50-SK16-200 2.75-16.0 SK16 40-70 200 40 IT50
IT50-SK20-105 3.5-20.0 SK20 47-80 105 48.5 IT50
IT50-SK20-135 3.5-20.0 SK20 47-80 135 48.5 IT50
IT50-SK20-165 3.5-20.0 SK20 47-80 165 48.5 IT50
IT50-SK20-200 3.5-20.0 SK20 47-80 200 48.5 IT50
IT50-SK25-105 7.5-25.4 SK25 50-85 105 55 IT50
IT50-SK25-135 7.5-25.4 SK25 50-85 135 55 IT50
IT50-SK25-165 7.5-25.4 SK25 50-85 165 55 IT50
IT50-SK25-200 7.5-25.4 SK25 50-85 200 55 IT50
IT50-SK6-105 0.7-6.0 SK6 21-35 105 19.5 IT50
IT50-SK6-135 0.7-6.0 SK6 21-35 135 19.5 IT50
IT50-SK6-165 0.7-6.0 SK6 21-35 165 19.5 IT50
IT50-SK6-200 0.7-6.0 SK6 21-35 200 19.5 IT50
IT50-SZF10-105 1.75-10.0 SZF10 30-50 105 27.5 IT50
IT50-SZF10-165 1.75-10.0 SZF10 30-50 165 27.5 IT50
IT50-SZF16-105 2.75-16.0 SZF16 45-65 105 40 IT50
IT50-SZF16-165 2.75-16.0 SZF16 45-65 165 40 IT50
IT50-SZF25-120 7.5-25.4 SZF25 55-85 120 55 IT50
IT50-SZF25-165 7.5-25.4 SZF25 55-85 165 55 IT50
IT50-SZF6-105 0.7-6.0 SZF6 21-35 105 19.5 IT50
IT50-SZF6-165 0.7-6.0 SZF6 21-35 165 19.5 IT50
MBT40-SKT10C-120 1.75-10.0 SKT10C 35-41 120 27.5 MBT40
MBT40-SKT10C-150 1.75-10.0 SKT10C 35-41 150 27.5 MBT40
MBT40-SKT10C-90 1.75-10.0 SKT10C 35-41 90 27.5 MBT40
MBT40-SKT13C-120 2.75-13.0 SKT13C 39-51 120 33 MBT40
MBT40-SKT13C-150 2.75-13.0 SKT13C 39-51 150 33 MBT40
MBT40-SKT13C-90 2.75-13.0 SKT13C 39-51 90 33 MBT40
MBT40-SKT16C-120 2.75-16.0 SKT16C 45-57 120 40 MBT40
MBT40-SKT16C-150 2.75-16.0 SKT16C 45-57 150 40 MBT40
MBT40-SKT16C-90 2.75-16.0 SKT16C 45-57 90 40 MBT40
MBT40-SKT20C-120 3.5-20.0 SKT20C 47-63 120 48.5 MBT40
MBT40-SKT20C-90 3.5-20.0 SKT20C 47-63 90 48.5 MBT40
MBT40-SKT25C-120 7.5-25.4 SKT25C 60-65 120 55 MBT40
MBT40-SKT25C-90 7.5-25.4 SKT25C 60-65 90 55 MBT40
MBT40-SKT6C-120 0.7-6.0 SKT6C 26-31 120 19.5 MBT40
MBT40-SKT6C-90 0.7-6.0 MBT40 26-31 90 19.5 MBT40
MBT40-SZF10C-150 1.75-10.0 SZF10C 30-50 150 27.5 MBT40
MBT40-SZF10C-90 1.75-10.0 SZF10C 30-50 90 27.5 MBT40
MBT40-SZF16C-150 2.75-16.0 SZF16C 45-65 150 40 MBT40
MBT40-SZF16C-90 2.75-16.0 SZF16C 45-65 90 40 MBT40
MBT40-SZF25C-120 7.5-25.4 SZF25C 55-85 120 55 MBT40
MBT40-SZF25C-150 7.5-25.4 SZF25C 55-85 150 55 MBT40
MBT40-SZF6C-150 0.7-6.0 SZF6C 21-35 150 19.5 MBT40
MBT40-SZF6C-90 0.7-6.0 SZF6C 21-35 90 19.5 MBT40
MBT50-SKT10C-105 1.75-10.0 SKT10C 35-41 105 27.5 MBT50
MBT50-SKT10C-165 1.75-10.0 SKT10C 35-41 165 27.5 MBT50
MBT50-SKT13C-105 2.75-13.0 SKT13C 39-51 105 33 MBT50
MBT50-SKT13C-165 2.75-13.0 SKT13C 39-51 165 33 MBT50
MBT50-SKT16C-105 2.75-16.0 SKT16C 45-57 105 40 MBT50
MBT50-SKT16C-165 2.75-16.0 SKT16C 45-57 165 40 MBT50
MBT50-SKT20C-105 3.5-20.0 SKT20C 47-63 105 48.5 MBT50
MBT50-SKT20C-165 3.5-20.0 SKT20C 47-63 165 48.5 MBT50
MBT50-SKT20C-165 3.5-20.0 SKT20C 47-63 105 48.5 MBT50
MBT50-SKT25C-105 7.5-25.4 SKT25C 60-65 105 55 MBT50
MBT50-SKT25C-165 7.5-25.4 SKT25C 60-65 165 55 MBT50
MBT50-SKT6C-105 0.7-6.0 SKT6C 26-31 105 19.5 MBT50
MBT50-SKT6C-165 0.7-6.0 SKT6C 26-31 165 19.5 MBT50
MBT50-SZF10C-105 1.75-10.0 SZF10C 30-50 105 27.5 MBT50
MBT50-SZF10C-165 1.75-10.0 SZF10C 30-50 165 27.5 MBT50
MBT50-SZF16C-105 2.75-16.0 SZF16C 45-65 105 40 MBT50
MBT50-SZF16C-165 2.75-16.0 SZF16C 45-65 165 40 MBT50
MBT50-SZF25C-135 7.5-25.4 SZF25C 55-85 135 55 MBT50
MBT50-SZF25C-165 7.5-25.4 SZF25C 55-85 165 55 MBT50
MBT50-SZF25C-165 7.5-25.4 SZF25C 55-85 165 55 MBT50
MBT50-SZF6C-105 0.7-6.0 SZF6C 21-35 105 19.5 MBT50
MBT50-SZF6C-165 0.7-6.0 SZF6C 21-35 165 19.5 MBT50
MIT40-SKT10C-120 1.75-10.0 SKT10C 35-41 120 27.5 MIT40
MIT40-SKT10C-150 1.75-10.0 SKT10C 35-41 150 27.5 MIT40
MIT40-SKT10C-90 1.75-10.0 SKT10C 35-41 90 27.5 MIT40
MIT40-SKT13C-120 2.75-13.0 SKT13C 39-51 120 33 MIT40
MIT40-SKT13C-150 2.75-13.0 SKT13C 39-51 150 33 MIT40
MIT40-SKT13C-90 2.75-13.0 SKT13C 39-51 90 33 MIT40
MIT40-SKT16C-120 2.75-16.0 SKT16C 45-57 120 40 MIT40
MIT40-SKT16C-150 2.75-16.0 SKT16C 45-57 150 40 MIT40
MIT40-SKT16C-90 2.75-16.0 SKT16C 45-57 90 40 MIT40
MIT40-SKT20C-120 4.0-20.0 SKT20C 47-63 120 48.5 MIT40
MIT40-SKT20C-90 4.0-20.0 SKT20C 47-63 90 48.5 MIT40
MIT40-SKT25C-120 8.0-25.4 SKT25C 60-65 120 55 MIT40
MIT40-SKT25C-90 8.0-25.4 SKT25C 60-65 90 55 MIT40
MIT40-SKT6C-120 0.7-6.0 SKT6C 26-31 120 19.5 MIT40
MIT40-SKT6C-90 0.7-6.0 SKT6C 26-31 90 19.5 MIT40
MIT50-SKT10C-105 1.75-10.0 SKT10C 35-41 105 27.5 MIT50
MIT50-SKT10C-165 1.75-10.0 SKT10C 35-41 165 27.5 MIT50
MIT50-SKT13C-105 2.75-13.0 SKT13C 39-51 105 33 MIT50
MIT50-SKT13C-165 2.75-13.0 SKT13C 39-51 165 33 MIT50
MIT50-SKT16C-105 2.75-16.0 SKT16C 45-57 105 40 MIT50
MIT50-SKT16C-165 2.75-16.0 SKT16C 45-57 165 40 MIT50
MIT50-SKT20C-105 4.0-20.0 SKT20C 47-63 105 48.5 MIT50
MIT50-SKT20C-165 4.0-20.0 SKT20C 47-63 165 48.5 MIT50
MIT50-SKT25C-120 8.0-25.4 SKT25C 60-70 120 55 MIT50
MIT50-SKT25C-165 8.0-25.4 SKT25C 60-70 165 55 MIT50
MIT50-SKT6C-105 0.7-6.0 SKT6C 26-31 105 19.5 MIT50
MIT50-SKT6C-165 0.7-6.0 SKT6C 26-31 165 19.5 MIT50
NBT30-SK10C-120 1.75-10.0 SK10C 33-41 120 27.5 NBT30
NBT30-SK10C-45 1.75-10.0 SK10C 33-41 45 27.5 NBT30
NBT30-SK10C-60 1.75-10.0 SK10C 33-41 60 27.5 NBT30
NBT30-SK10C-75 1.75-10.0 SK10C 33-41 75 27.5 NBT30
NBT30-SK10C-90 1.75-10.0 SK10C 33-41 90 27.5 NBT30
NBT30-SK13C-120 2.75-13.0 SK13C 39-51 120 33 NBT30
NBT30-SK13C-60 2.75-13.0 SK13C 39-51 60 33 NBT30
NBT30-SK13C-75 2.75-13.0 SK13C 39-51 75 33 NBT30
NBT30-SK13C-90 2.75-13.0 SK13C 39-51 90 33 NBT30
NBT30-SK16C-120 2.75-16.0 SK16C 45-57 120 40 NBT30
NBT30-SK16C-60 2.75-16.0 SK16C 47-52 60 40 NBT30
NBT30-SK16C-75 2.75-16.0 SK16C 45-52 75 40 NBT30
NBT30-SK16C-90 2.75-16.0 SK16C 45-57 90 40 NBT30
NBT30-SK20-60 3.5-20.0 SK20 65-70 60 48.5 NBT30
NBT30-SK20C-75 3.5-20.0 SK20C 55-55 75 48.5 NBT30
NBT30-SK20C-90 3.5-20.0 SK20C 47-63 90 48.5 NBT30
NBT30-SK20C-90 3.5-20.0 SK20C 47-63 90 48.5 NBT30
NBT30-SK25-90 7.5-25.4 SK25 55-75 90 55 NBT30
NBT30-SK6C-120 0.7-6.0 SK6C 26-31 120 19.5 NBT30
NBT30-SK6C-60 0.7-6.0 SK6C 26-31 60 19.5 NBT30
NBT30-SK6C-90 0.7-6.0 SK6C 26-31 90 19.5 NBT30
NBT30-SZF10C-90 1.75-10.0 SZF10C 30-50 90 27.5 NBT30
NBT30-SZF16C-105 2.75-16.0 SZF16C 45-65 105 40 NBT30
NBT30-SZF6C-90 0.7-6.0 SZF6C 21-35 90 19.5 NBT30
NBT40-SK10C-150 1.75-10.0 SK10C 33-41 150 27.5 NBT40
NBT40-SK10C-180 1.75-10.0 SK10C 33-41 180 27.5 NBT40
NBT40-SK10C-200 1.75-10.0 SK10C 33-41 200 27.5 NBT40
NBT40-SK10C-250 1.75-10.0 SK10C 33-41 250 27.5 NBT40
NBT40-SK10C-60 1.75-10.0 SK10C 33-41 60 27.5 NBT40
NBT40-SK10C-75 1.75-10.0 SK10C 33-41 75 27.5 NBT40
NBT40-SK10C-90 1.75-10.0 SK10C 33-41 90 27.5 NBT40
NBT40-SK10C-90 1.75-10.0 SK10C 33-41 90 27.5 NBT40
NBT40-SK13C-120 2.75-13.0 SK13C 39-51 120 33 NBT40
NBT40-SK13C-150 2.75-13.0 SK13C 39-51 150 33 NBT40
NBT40-SK13C-180 2.75-13.0 SK13C 39-51 180 33 NBT40
NBT40-SK13C-200 2.75-13.0 SK13C 39-51 200 33 NBT40
NBT40-SK13C-250 2.75-13.0 SK13C 39-51 250 33 NBT40
NBT40-SK13C-60 2.75-13.0 SK13C 39-51 60 33 NBT40
NBT40-SK13C-75 2.75-13.0 SK13C 39-51 75 33 NBT40
NBT40-SK13C-90 2.75-13.0 SK13C 39-51 90 33 NBT40
NBT40-SK16C-120 2.75-16.0 SK16C 45-57 120 40 NBT40
NBT40-SK16C-150 2.75-16.0 SK16C 45-57 150 40 NBT40
NBT40-SK16C-180 2.75-16.0 SK16C 45-57 180 40 NBT40
NBT40-SK16C-200 2.75-16.0 SK16C 45-57 200 40 NBT40
NBT40-SK16C-250 2.75-16.0 SK16C 45-57 250 40 NBT40
NBT40-SK16C-60 2.75-16.0 SK16C 45-52 60 40 NBT40
NBT40-SK16C-75 2.75-16.0 SK16C 45-57 75 40 NBT40
NBT40-SK16C-90 2.75-16.0 SK16C 45-57 90 40 NBT40
NBT40-SK20C-120 3.5-20.0 SK20C 47-63 120 48.5 NBT40
NBT40-SK20C-60 3.5-20.0 SK20C 57-63 60 48.5 NBT40
NBT40-SK20C-75 3.5-20.0 SK20C 47-63 75 48.5 NBT40
NBT40-SK20C-90 3.5-20.0 SK20C 47-63 90 48.5 NBT40
NBT40-SK25C-120 7.5-25.4 SK25C 60-70 120 55 NBT40
NBT40-SK25C-75 7.5-25.4 SK25C 60-65 75 55 NBT40
NBT40-SK25C-90 7.5-25.4 SK25C 60-65 90 55 NBT40
NBT40-SK6C-120 0.7-6.0 SK6C 26-31 120 19.5 NBT40
NBT40-SK6C-150 0.7-6.0 SK6C 26-31 150 19.5 NBT40
NBT40-SK6C-60 0.7-6.0 SK6C 26-31 60 19.5 NBT40
NBT40-SK6C-90 0.7-6.0 SK6C 26-31 90 19.5 NBT40
NBT40-SZF10C-150 1.75-10.0 SZF10C 30-50 150 27.5 NBT40
NBT40-SZF10C-90 1.75-10.0 SZF10C 30-50 90 27.5 NBT40
NBT40-SZF16C-150 2.75-16.0 SZF16C 45-65 150 40 NBT40
NBT40-SZF16C-90 2.75-16.0 SZF16C 45-65 90 40 NBT40
NBT40-SZF25C-120 7.5-25.4 SZF25C 55-85 120 55 NBT40
NBT40-SZF25C-150 7.5-25.4 SZF25C 55-85 150 55 NBT40
NBT40-SZF6C-150 0.7-6.0 SZF6C 21-35 150 19.5 NBT40
NBT40-SZF6C-90 0.7-6.0 SZF6C 21-35 90 19.5 NBT40
NBT50-SK10C-105 1.75-10.0 SK10C 33-41 105 27.5 NBT50
NBT50-SK10C-135 1.75-10.0 SK10C 33-41 135 27.5 NBT50
NBT50-SK10C-165 1.75-10.0 SK10C 33-41 165 27.5 NBT50
NBT50-SK10C-200 1.75-10.0 SK10C 33-41 200 27.5 NBT50
NBT50-SK10C-225 1.75-10.0 SK10C 33-41 225 27.5 NBT50
NBT50-SK10C-250 1.75-10.0 SK10C 33-41 250 27.5 NBT50
NBT50-SK10C-300 1.75-10.0 SK10C 33-41 300 27.5 NBT50
NBT50-SK13C-105 2.75-13.0 SK13C 39-51 105 33 NBT50
NBT50-SK13C-135 2.75-13.0 SK13C 39-51 135 33 NBT50
NBT50-SK13C-165 2.75-13.0 SK13C 39-51 165 33 NBT50
NBT50-SK13C-200 2.75-13.0 SK13C 39-51 200 33 NBT50
NBT50-SK13C-250 2.75-13.0 SK13C 39-51 250 33 NBT50
NBT50-SK13C-300 2.75-13.0 SK13C 39-51 300 33 NBT50
NBT50-SK16C-105 2.75-16.0 SK16C 45-57 105 40 NBT50
NBT50-SK16C-135 2.75-16.0 SK16C 45-57 135 40 NBT50
NBT50-SK16C-165 2.75-16.0 SK16C 45-57 165 40 NBT50
NBT50-SK16C-200 2.75-16.0 SK16C 45-57 200 40 NBT50
NBT50-SK16C-250 2.75-16.0 SK16C 45-57 250 40 NBT50
NBT50-SK16C-300 2.75-16.0 SK16C 45-57 300 40 NBT50
NBT50-SK20C-105 3.5-20.0 SK20C 47-63 105 48.5 NBT50
NBT50-SK20C-135 3.5-20.0 SK20C 47-63 135 48.5 NBT50
NBT50-SK20C-165 3.5-20.0 SK20C 47-63 165 48.5 NBT50
NBT50-SK20C-200 3.5-20.0 SK20C 47-63 200 48.5 NBT50
NBT50-SK20C-250 3.5-20.0 SK20C 47-63 250 48.5 NBT50
NBT50-SK20C-300 3.5-20.0 SK20C 47-63 300 48.5 NBT50
NBT50-SK25C-105 7.5-25.4 SK25C 60-70 105 55 NBT50
NBT50-SK25C-135 7.5-25.4 SK25C 60-70 135 55 NBT50
NBT50-SK25C-165 7.5-25.4 SK25C 60-70 165 55 NBT50
NBT50-SK25C-200 7.5-25.4 SK25C 60-70 200 55 NBT50
NBT50-SK25C-250 7.5-25.4 SK25C 60-70 250 55 NBT50
NBT50-SK25C-300 7.5-25.4 SK25C 60-70 300 55 NBT50
NBT50-SK6C-105 0.7-6.0 SK6C 26-31 105 19.5 NBT50
NBT50-SK6C-135 0.7-6.0 SK6C 26-31 135 19.5 NBT50
NBT50-SK6C-165 0.7-6.0 SK6C 26-31 165 19.5 NBT50
NBT50-SK6C-200 0.7-6.0 SK6C 26-31 200 19.5 NBT50
NBT50-SZF10C-105 1.75-10.0 SZF10C 30-50 105 27.5 NBT50
NBT50-SZF10C-165 1.75-10.0 SZF10C 30-50 165 27.5 NBT50
NBT50-SZF16C-105 2.75-16.0 SZF16C 45-65 105 40 NBT50
NBT50-SZF16C-165 2.75-16.0 SZF16C 45-65 165 40 NBT50
NBT50-SZF25C-135 7.5-25.4 SZF25C 55-85 135 55 NBT50
NBT50-SZF25C-165 7.5-25.4 SZF25C 55-85 165 55 NBT50
NBT50-SZF6C-105 0.7-6.0 SZF6C 21-35 105 19.5 NBT50
NBT50-SZF6C-165 0.7-6.0 SZF6C 21-35 165 19.5 NBT50
NIT40-SK10C-120 1.75-10.0 SK10C 30-50 120 27.5 NIT40
NIT40-SK10C-150 1.75-10.0 SK10C 30-50 150 27.5 NIT40
NIT40-SK10C-180 1.75-10.0 SK10C 30-50 180 27.5 NIT40
NIT40-SK10C-60 1.75-10.0 SK10C 30-50 60 27.5 NIT40
NIT40-SK10C-90 1.75-10.0 SK10C 30-50 90 27.5 NIT40
NIT40-SK13C-120 2.75-13.0 SK13C 31-65 120 33 NIT40
NIT40-SK13C-150 2.75-13.0 SK13C 31-65 150 33 NIT40
NIT40-SK13C-180 2.75-13.0 SK13C 31-65 180 33 NIT40
NIT40-SK13C-60 2.75-13.0 SK13C 31-65 60 33 NIT40
NIT40-SK13C-90 2.75-13.0 SK13C 31-65 90 33 NIT40
NIT40-SK16C-120 2.75-16.0 SK16C 45-70 120 40 NIT40
NIT40-SK16C-150 2.75-16.0 SK16C 45-70 150 40 NIT40
NIT40-SK16C-180 2.75-16.0 SK16C 45-70 180 40 NIT40
NIT40-SK16C-60 2.75-16.0 SK16C 50-65 60 40 NIT40
NIT40-SK16C-90 2.75-16.0 SK16C 45-70 90 40 NIT40
NIT40-SK20C-120 3.5-20.0 SK20C 47-80 120 48.5 NIT40
NIT40-SK20C-90 3.5-20.0 SK20C 47-80 90 48.5 NIT40
NIT40-SK25C-120 7.5-25.4 SK25C 55-75 120 55 NIT40
NIT40-SK25C-90 7.5-25.4 SK25C 55-75 90 55 NIT40
NIT40-SK6C-120 0.7-6.0 SK6C 21-35 120 19.5 NIT40
NIT40-SK6C-150 0.7-6.0 SK6C 21-35 150 19.5 NIT40
NIT40-SK6C-60 0.7-6.0 SK6C 21-35 60 19.5 NIT40
NIT40-SK6C-90 0.7-6.0 SK6C 21-35 90 19.5 NIT40
NIT50-SK10C-105 1.75-10.0 SK10C 30-50 105 27.5 NIT50
NIT50-SK10C-135 1.75-10.0 SK10C 30-50 135 27.5 NIT50
NIT50-SK10C-165 1.75-10.0 SK10C 30-50 165 27.5 NIT50
NIT50-SK10C-200 1.75-10.0 SK10C 30-50 200 27.5 NIT50
NIT50-SK13C-105 2.75-13.0 SK13C 31-65 105 33 NIT50
NIT50-SK13C-135 2.75-13.0 SK13C 31-65 135 33 NIT50
NIT50-SK13C-165 2.75-13.0 SK13C 31-65 165 33 NIT50
NIT50-SK13C-200 2.75-13.0 SK13C 31-65 200 33 NIT50
NIT50-SK16C-105 2.75-16.0 SK16C 40-70 105 40 NIT50
NIT50-SK16C-135 2.75-16.0 SK16C 40-70 135 40 NIT50
NIT50-SK16C-165 2.75-16.0 SK16C 40-70 165 40 NIT50
NIT50-SK16C-200 2.75-16.0 SK16C 40-70 200 40 NIT50
NIT50-SK20C-105 3.5-20.0 SK20C 47-80 105 48.5 NIT50
NIT50-SK20C-135 3.5-20.0 SK20C 47-80 135 48.5 NIT50
NIT50-SK20C-165 3.5-20.0 SK20C 47-80 165 48.5 NIT50
NIT50-SK20C-200 3.5-20.0 SK20C 47-80 200 48.5 NIT50
NIT50-SK25C-105 7.5-25.4 SK25C 50-85 105 55 NIT50
NIT50-SK25C-135 7.5-25.4 SK25C 50-85 135 55 NIT50
NIT50-SK25C-165 7.5-25.4 SK25C 50-85 165 55 NIT50
NIT50-SK25C-200 7.5-25.4 SK25C 50-85 200 55 NIT50
NIT50-SK6C-105 0.7-6.0 SK6C 21-35 105 19.5 NIT50
NIT50-SK6C-135 0.7-6.0 SK6C 21-35 135 19.5 NIT40
NIT50-SK6C-165 0.7-6.0 SK6C 21-35 165 19.5 NIT50
NIT50-SK6C-200 0.7-6.0 SK6C 21-35 200 19.5 NIT50
