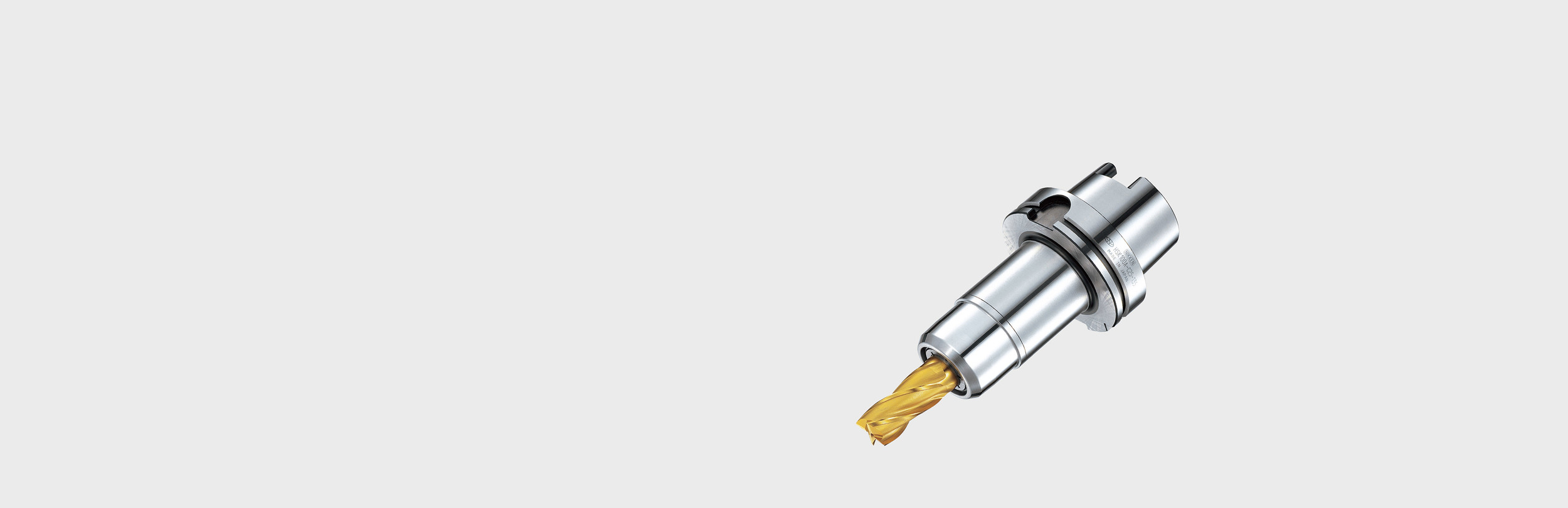

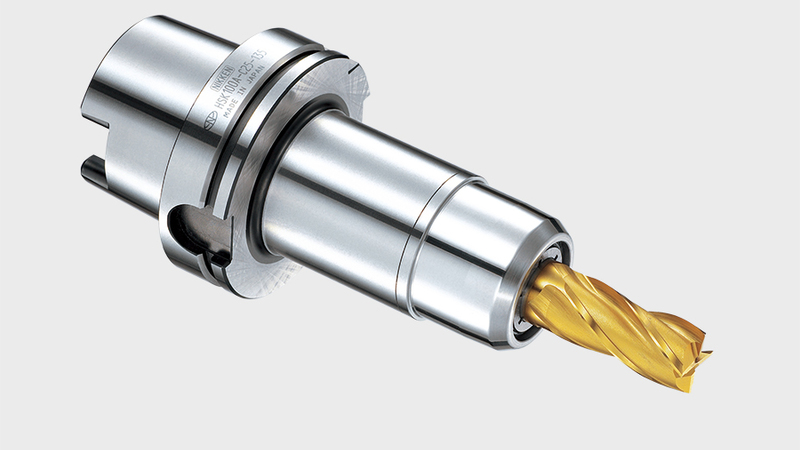

NIKKEN in Rulmanlı tutucusu en üst düzey rulmanlı tutucudur

Rulmanlı Tutucu mekanik bir tutucudur. Yapısı iki ana parçadan oluşur: Tek parça ‘sub zero’ diye adlandırılan özel ısıl işlem görmüş ve ön tarafta iç çapında boyuna kanalları olan gövde.

Ana gövde, içinde konik bir çelik yataklama kafesi bulunan ayrı üretilmiş bir sıkma somununa bağlanır. Bu kafes yüzlerce hassas sertleştirilmiş ve kaplanmış iğne rulman ile birlikte bir dizi halka, conta ve ara parçası içerir. Her şey biraraya getirildiğinde karmaşık ama güçlü!

Operasyon çok basit ancak çok etkilidir. Kesici takım ve gerekirse pens, tutucu ana deliğine takılır, daha sonra somun saat yönünde döndürülür.

Normalde elle başlayıp sonra uygun bir anahtarla yapılan bu döndürme, somunun gövdenin küçük açılı dış konikliğine ‘tırmanma“sı ile sonuçlanır ve ana deliğin tam uzunluğu kesici takım sapının etrafında nihai sıkma kuvveti sağlar.

Somunun arka yüzü tutucu gövdesinin ön yüzü ile temas ettiğinde, somunun dönüşü ve sıkma işlemi tamamlanmıştır. Kesici takım, kanallı deliğin sıkıştırılırken takım sapına uygulanan kuvvet ve sürtünmenin artmasıyla tutulur. NIKKEN Rulmanlı tutucu, piyasadaki diğer benzer ürünlerden 3-4 kat daha fazla sıkma kuvveti sağlar! Mutlak ve kesin kavrama kuvveti!

  • Salgı garantisi 3 x çapta 5µm

  • Hangi boyutta olursa olsun üstün ve pazar lideri sıkma torku (örn. C20 = 980Nm)

  • Uzun vadeli güvenilirlik, sağlamlık ve dayanıklılık

  • Hem uç hem de dipten eşit miktarda sıkma

  • 40.000 dev / dak'ya kadar yüksek hızlı seçenekler, G2.5 balanslı

  • NIKKEN'in Jetter ve diğer soğutucu seçenekleri mevcut

Tüm NIKKEN NC Takım Çözümlerinde olduğu gibi, hem müşterinin / sürecin hem de tezgahın gereksinimlerini karşılamak için Rulmanlı Tutucunun çok sayıda sap ve boyut seçeneği vardır.

Standart Rulmanlı Tutucunun çentikli bir somunu olduğundan, sıkma için ay anahtar diye anılan bir anahtara ihtiyaç vardır. Ayrıca yüksek devirli çalışma seçeneğinde , kanalsız somun kullanan ve sıkma için ‘GH’ tipi rulmanlı anahtar gereken alternatif mevcuttur.

Rulmanlı Tutucunun doğrudan sıkma hali en etkli haldir. Bu yüzden seçilen Rulmanlı Tutucu kapasitesinin, kullanılacak olan kesicinin şaft çapına tam olarak uyması tercihtir. Ancak tutcunun kapsamını ve çok yönlülüğünü arttırmak için bir dizi pens mevcuttur.

Takım sapına bağlı olarak RulmanlıTutucu 6 standart boyutta mevcuttur:

  • C12 - 12mm doğrudan veya pens ile 2.0mm ile 10.0mm arası çaplar için.
  • C16 - 16mm doğrudan veya pens ile 2.0mm to 12.0mm arası çaplar için.
  • C20 - 20mm doğrudan veya pens ile 2.0mm to 16.0mm arası çaplar için.
  • C25 - 25mm doğrudan veya pens ile 3.0mm to 22.0mm arası çaplar için.
  • C32 - 32mm doğrudan veya pens ile 3.0mm to 30.0mm arası çaplar için.
  • C42 - 42mm doğrudan veya pens ile 3.0mm to 40.0mm arası çaplar için.

Soğutma sıvısı gereksinimi, uygun CKFN pens önü somununun, vidalı CCK hassas penslere takılması ile de sağlanabilir.

YÜKSEK HIZ SEÇENEĞİ MEVCUTTUR

NIKKEN Nikken Rulmanlı Tutucusu - SÜPER YAVAŞ HAREKET VİDEOSU

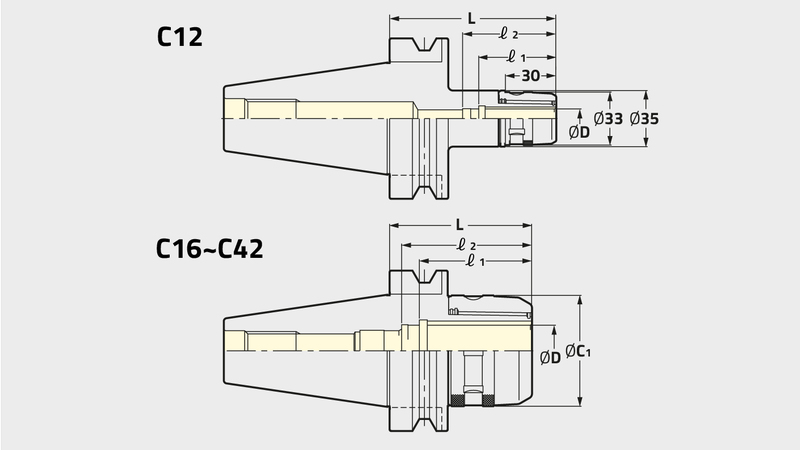

KAPASİTE 'D' KOD Sıkma Boyu 'H' BOY 'L' SOMUN/ÖN ÇAP. 'C Sap Ölçüsü
BT30-C12-55 2.0-12.0 C12 40 55 33 BT30
BT30-C16-55 2.0-16.0 C16 47.5 55 44 BT30
BT30-C20-65 2.0-20.0 C20 53 65 52 BT30
BT30-C20-75 2.0-20.0 C20 53 75 52 BT30
BT30-C25-75 3.0-25.0 BT30 59 75 55 BT30
BT30-C25-80 3.0-25.0 C25 59 80 55 BT30
BT30-C32-100 3.0-32.0 C32 64.5 100 64 BT30
BT30-C32-90 3.0-32.0 C32 64.5 90 64 BT30
BT30-CZF20-100 2.0-20.0 CZF20 53 100 51.5 BT30
BT30-CZF25-100 3.0-25.0 CZF25 59 100 59.5 BT30
BT35-C12-60 2.0-12.0 C12 40 60 33 BT35
BT35-C16-60 2.0-16.0 C16 47.5 60 44 BT35
BT35-C20-70 2.0-20.0 C20 53 70 52 BT35
BT35-C25-75 3.0-25.0 C25 59 75 60 BT35
BT35-C32-85 3.0-32.0 C32 64.5 85 64 BT35
BT40-C12-120 2.0-12.0 C12 40 120 33 BT40
BT40-C12-65 2.0-12.0 C12 40 65 33 BT40
BT40-C12-90 2.0-12.0 90 40 90 33 BT40
BT40-C16-120 2.0-16.0 C16 47.5 120 44 BT40
BT40-C16-60 2.0-16.0 C16 47.5 60 44 BT40
BT40-C16-90 2.0-16.0 C16 47.5 90 44 BT40
BT40-C20-105 2.0-20.0 C20 53 105 52 BT40
BT40-C20-120 2.0-20.0 C20 53 120 52 BT40
BT40-C20-70 2.0-20.0 C20 53 70 52 BT40
BT40-C20-90 2.0-20.0 C20 53 90 52 BT40
BT40-C25-120 3.0-25.0 C25 59 120 60 BT40
BT40-C25-70 3.0-25.0 C25 59 70 60 BT40
BT40-C25-90 3.0-25.0 C25 59 90 60 BT40
BT40-C32-105 3.0-32.0 C32 64.5 105 69 BT40
BT40-C32-120 3.0-32.0 C32 64.5 120 69 BT40
BT40-C32-85 3.0-32.0 C32 64.5 85 69 BT40
BT40-CZF20-105 2.0-20.0 CZF20 53 105 51.5 BT40
BT40-CZF20-120 2.0-20.0 CZF20 53 120 51.5 BT40
BT40-CZF25-105 3.0-25.0 CZF25 59 105 59.5 BT40
BT40-CZF25-120 3.0-25.0 CZF25 59 120 59.5 BT40
BT40-CZF32-120 3.0-32.0 CZF32 64.5 120 69 BT40
BT45-C12-105 2.0-12.0 C12 40 105 33 BT45
BT45-C16-105 2.0-16.0 C16 47.5 105 44 BT45
BT45-C20-105 2.0-20.0 C20 53 105 52 BT45
BT45-C25-105 3.0-25.0 C25 59 105 60 BT45
BT45-C32-85 3.0-32.0 C32 64.5 85 69 BT45
BT45-C42-110 3.0-42.0 C42 73-78 110 86 BT45
BT50-C12-105 2.0-12.0 C12 40 105 33 BT50
BT50-C12-135 2.0-12.0 C12 40 135 33 BT50
BT50-C12-165 2.0-12.0 C12 40 165 33 BT50
BT50-C16-105 2.0-16.0 C16 47.5 105 44 BT50
BT50-C16-135 2.0-16.0 C16 47.5 135 44 BT50
BT50-C16-165 2.0-16.0 C16 47.5 165 44 BT50
BT50-C20-105 2.0-20.0 C20 53 105 52 BT50
BT50-C20-135 2.0-20.0 C20 53 135 52 BT50
BT50-C20-165 2.0-20.0 C20 53 165 52 BT50
BT50-C20-180 2.0-20.0 C20 53 180 52 BT50
BT50-C25-105 3.0-25.0 C25 59 105 60 BT50
BT50-C25-135 3.0-25.0 C25 59 135 60 BT50
BT50-C25-165 3.0-25.0 C25 59 165 60 BT50
BT50-C32-105 3.0-32.0 C32 64.5 105 69 BT50
BT50-C32-120 3.0-32.0 C32 64.5 120 69 BT50
BT50-C32-135 3.0-32.0 C32 64.5 135 69 BT50
BT50-C32-165 3.0-32.0 C32 64.5 165 69 BT50
BT50-C32-200 3.0-32.0 C32 64.5 200 69 BT50
BT50-C32-250 3.0-32.0 C32 64.5 250 69 BT50
BT50-C32-300 3.0-32.0 C32 64.5 300 69 BT50
BT50-C32-400 3.0-32.0 C32 64.5 400 69 BT50
BT50-C32-500 3.0-32.0 C32 64.5 500 69 BT50
BT50-C32-90 3.0-32.0 C32 64.5 90 69 BT50
BT50-C42-105 3.0-42.0 C42 73-78 105 86 BT50
BT50-C42-120 3.0-42.0 C42 73-78 120 86 BT50
BT50-C42-135 3.0-42.0 C42 73-78 135 86 BT50
BT50-C42-165 3.0-42.0 C42 73-78 165 86 BT50
BT50-C42-200 3.0-42.0 C42 73-78 200 86 BT50
BT50-C42-250 3.0-42.0 C42 73-78 250 86 BT50
BT50-C42-300 3.0-42.0 C42 73-78 300 86 BT50
BT50-C42-400 3.0-42.0 C42 73-78 400 86 BT50
BT50-C42-500 3.0-42.0 C42 73-78 500 86 BT50
BT50-C42-90 3.0-42.0 C42 73-78 90 86 BT50
BT50-CZF20-105 2.0-20.0 CZF20 53 105 51.5 BT50
BT50-CZF20-165 2.0-20.0 CZF20 53 165 51.5 BT50
BT50-CZF25-105 3.0-25.0 CZF25 59 105 59.5 BT50
BT50-CZF25-165 3.0-25.0 CZF25 59 165 59.5 BT50
BT50-CZF32-105 3.0-32.0 CZF32 64.5 105 69 BT50
BT50-CZF32-165 3.0-32.0 CZF32 64.5 165 69 BT50
HSK100A-C16-135 2.0-16.0 C16 52 135 44 HSK100A
HSK100A-C16-165 2.0-16.0 C16 52 165 44 HSK100A
HSK100A-C16-90 2.0-16.0 C16 52 90 44 HSK100A
HSK100A-C20-115 2.0-20.0 C20 58 115 52 HSK100A
HSK100A-C20-135 2.0-20.0 C20 58 135 52 HSK100A
HSK100A-C20-165 2.0-20.0 C20 58 165 52 HSK100A
HSK100A-C25-115 3.0-25.0 C25 61 115 60 HSK100A
HSK100A-C25-135 3.0-25.0 C25 61 135 60 HSK100A
HSK100A-C25-165 3.0-25.0 C25 61 165 60 HSK100A
HSK100A-C32-115 3.0-32.0 C32 66 115 69 HSK100A
HSK100A-C32-135 3.0-32.0 C32 70 135 69 HSK100A
HSK100A-C32-200 3.0-32.0 C32 70 200 69 HSK100A
HSK100A-C32-250 3.0-32.0 C32 70 250 69 HSK100A
HSK100A-C32-300 3.0-32.0 C32 70 300 69 HSK100A
HSK100A-C42-115 3.0-42.0 C42 73 115 86 HSK100A
HSK100A-C42-165 3.0-42.0 C42 73 165 86 HSK100A
HSK100A-C42-200 3.0-42.0 C42 73 250 86 HSK100A
HSK100A-C42-200 3.0-42.0 C42 73 200 86 HSK100A
HSK100A-C42-300 3.0-42.0 C42 73 300 86 HSK100A
HSK100A-CZF20-115 2.0-20.0 CZF20 58 115 51.5 HSK100A
HSK100A-CZF25-115 3.0-25.0 CZF25 61 115 59.5 HSK100A
HSK100A-CZF32-115 3.0-32.0 CZF32 66 115 69 HSK100A
HSK10A-C32-165 3.0-32.0 C32 70 165 69 HSK100A
HSK40A-C12-80 2.0-12.0 C12 49 80 33 HSK40A
HSK40A-C16-80 2.0-16.0 C16 51 80 44 HSK40A
HSK40A-C20-100 2.0-20.0 C20 - 100 52 HSK40A
HSK50A-C12-80 2.0-12.0 C12 49 80 33 HSK50A
HSK50A-C16-90 2.0-16.0 C16 51 90 44 HSK50A
HSK50A-C20-95 2.0-20.0 C20 58 95 52 HSK50A
HSK50A-C25-100 3.0-25.0 C25 56 100 55 HSK50A
HSK50A-C32-115 3.0-32.0 C32 - 115 64 HSK50A
HSK50A-CZF20-115 2.0-20.0 CZF20 58 115 51.5 HSK50A
HSK63A-C12-90 2.0-12.0 C12 49 90 33 HSK63A
HSK63A-C16-120 2.0-16.0 C16 51 120 44 HSK63A
HSK63A-C16-75 2.0-16.0 C16 - 75 44 HSK63A
HSK63A-C16-90 2.0-16.0 C16 51 90 44 HSK63A
HSK63A-C20-110 2.0-20.0 C20 58 110 52 HSK63A
HSK63A-C20-85 2.0-20.0 C20 - 85 52 HSK63A
HSK63A-C20-95 2.0-20.0 C20 58 95 52 HSK63A
HSK63A-C25-100 3.0-25.0 C25 61 100 60 HSK63A
HSK63A-C25-130 3.0-25.0 C25 61 130 60 HSK63A
HSK63A-C25-90 3.0-25.0 C25 59 90 60 HSK63A
HSK63A-C32-110 3.0-32.0 C32 66 110 69 HSK63A
HSK63A-C32-130 3.0-32.0 C32 70 130 69 HSK63A
HSK63A-CZF20-110 2.0-20.0 CZF20 58 110 51.5 HSK63A
HSK63A-CZF25-110 3.0-25.0 CZF25 59 110 59.5 HSK63A
HSK63A-CZF32-130 3.0-32.0 CZF32 66 130 69 HSK63A
IT40-C12-120 2.0-12.0 C12 40 120 33 IT40
IT40-C12-65 2.0-12.0 C12 40 65 33 IT40
IT40-C12-90 2.0-12.0 C12 40 90 33 IT40
IT40-C16-60 2.0-16.0 C16 47.5 60 44 IT40
IT40-C20-105 2.0-20.0 C20 53 105 52 IT40
IT40-C20-120 2.0-20.0 IT40 53 120 52 IT40
IT40-C20-80 2.0-20.0 C20 53 80 52 IT40
IT40-C20-90 2.0-20.0 C20 53 105 52 IT40
IT40-C25-105 3.0-25.0 C25 59 105 60 IT40
IT40-C25-120 3.0-25.0 C25 59 120 60 IT40
IT40-C25-85 3.0-25.0 C25 59 85 60 IT40
IT40-C32-105 3.0-32.0 C32 64.5 105 64 IT40
IT40-C32-120 3.0-32.0 C32 64.5 120 64 IT40
IT40-C32-95 3.0-32.0 C32 64.5 95 64 IT40
IT40-CZF20-105 2.0-20.0 CZF20 53 105 51.5 IT40
IT40-CZF25-105 3.0-25.0 CZF25 59 105 59.5 IT40
IT40-CZF32-120 3.0-32.0 CZF32 64.5 120 69 IT40
IT50-C12-105 2.0-12.0 C12 40 105 33 IT50
IT50-C12-135 2.0-12.0 C12 40 135 33 IT50
IT50-C12-165 2.0-12.0 C12 40 165 33 IT50
IT50-C16-105 2.0-16.0 C16 47.5 105 44 IT50
IT50-C16-135 2.0-16.0 C16 47.5 135 44 IT50
IT50-C16-165 2.0-16.0 C16 47.5 165 44 IT50
IT50-C20-105 2.0-20.0 C20 53 105 52 IT50
IT50-C20-135 2.0-20.0 C20 53 135 52 IT50
IT50-C20-165 2.0-20.0 C20 53 165 52 IT50
IT50-C20-180 2.0-20.0 C20 53 180 52 IT50
IT50-C25-105 3.0-25.0 C25 59 105 60 IT50
IT50-C25-165 3.0-25.0 C25 59 165 60 IT50
IT50-C32-105 3.0-32.0 C32 64.5 105 69 IT50
IT50-C32-120 3.0-32.0 C32 64.5 120 69 IT50
IT50-C32-135 3.0-32.0 C32 64.5 135 69 IT50
IT50-C32-165 3.0-32.0 C32 64.5 165 69 IT50
IT50-C32-85 3.0-32.0 C32 64.5 85 69 IT50
IT50-C42-105 3.0-42.0 C42 73-78 105 86 IT50
IT50-C42-135 3.0-42.0 C42 73-78 135 86 IT50
IT50-C42-165 3.0-42.0 C42 73-78 165 86 IT50
IT50-C42-95 3.0-42.0 C42 73-78 95 86 IT50
IT50-CZF20-105 2.0-20.0 CZF20 53 105 51.5 IT50
IT50-CZF25-105 3.0-25.0 CZF25 59 105 59.5 IT50
IT50-CZF32-120 3.0-32.0 CZF32 64.5 120 69 IT50
MBT40-C12-120 2.0-12.0 C12 40 120 33 MBT40
MBT40-C12-90 2.0-12.0 C12 40 90 33 MBT40
MBT40-C16-120 2.0-16.0 C16 47.5 120 44 MBT40
MBT40-C16-60 2.0-16.0 C16 47.5 60 44 MBT40
MBT40-C16-90 2.0-16.0 C16 47.5 90 44 MBT40
MBT40-C20-120 2.0-20.0 C20 53 120 52 MBT40
MBT40-C20-70 2.0-20.0 C20 53 70 52 MBT40
MBT40-C20-90 2.0-20.0 C20 53 90 52 MBT40
MBT40-C25-120 3.0-25.0 C25 59 120 60 MBT40
MBT40-C25-70 3.0-25.0 C25 59 70 60 MBT40
MBT40-C25-90 3.0-25.0 C25 59 90 60 MBT40
MBT40-C32-105 3.0-32.0 C32 64.5 105 69 MBT40
MBT40-C32-120 3.0-32.0 C32 64.5 120 69 MBT40
MBT40-C32-85 3.0-32.0 C32 64.5 85 69 MBT40
MBT40-CZF20-105 2.0-20.0 CZF20 53 105 51.5 MBT40
MBT40-CZF20-120 2.0-20.0 CZF20 53 120 51.5 MBT40
MBT40-CZF25-105 3.0-25.0 CZF25 59 105 59.5 MBT40
MBT40-CZF25-120 3.0-25.0 CZF25 59 120 59.5 MBT40
MBT40-CZF32-120 3.0-32.0 CZF32 64.5 120 69 MBT40
MBT50-C12-105 2.0-12.0 C12 40 105 33 MBT50
MBT50-C12-165 2.0-12.0 C12 40 165 33 MBT50
MBT50-C16-105 2.0-16.0 C16 47.5 105 44 MBT50
MBT50-C16-165 2.0-16.0 C16 47.5 165 44 MBT50
MBT50-C16-200 2.0-16.0 C16 47.5 200 44 MBT50
MBT50-C20-105 2.0-20.0 C20 53 105 52 MBT50
MBT50-C20-165 2.0-20.0 C20 53 165 52 MBT50
MBT50-C20-200 2.0-20.0 C20 53 200 52 MBT50
MBT50-C25-105 3.0-25.0 C25 59 105 60 MBT50
MBT50-C25-135 3.0-25.0 C25 59 135 60 MBT50
MBT50-C25-165 3.0-25.0 C25 59 165 60 MBT50
MBT50-C32-105 3.0-32.0 C32 64.5 105 69 MBT50
MBT50-C32-135 3.0-32.0 C32 64.5 120 69 MBT50
MBT50-C32-165 3.0-32.0 C32 64.5 165 69 MBT50
MBT50-C32-200 3.0-32.0 C32 64.5 200 69 MBT50
MBT50-C32-250 3.0-32.0 C32 64.5 250 69 MBT50
MBT50-C32-300 3.0-32.0 C32 64.5 300 69 MBT50
MBT50-C32-90 3.0-32.0 C32 64.5 90 69 MBT50
MBT50-C42-105 3.0-42.0 C42 73-78 105 86 MBT50
MBT50-C42-120 3.0-42.0 C42 73-78 120 86 MBT50
MBT50-C42-135 3.0-42.0 C42 73-78 135 86 MBT50
MBT50-C42-165 3.0-42.0 C42 73-78 165 86 MBT50
MBT50-C42-200 3.0-42.0 C42 73-78 200 86 MBT50
MBT50-C42-250 3.0-42.0 C42 73-78 250 86 MBT50
MBT50-C42-300 3.0-42.0 C42 73-78 300 86 MBT50
MBT50-C42-95 3.0-42.0 C42 73-78 95 86 MBT50
MBT50-CZF20-105 2.0-20.0 CZF20 53 105 51.5 MBT50
MBT50-CZF20-165 2.0-20.0 CZF20 53 165 51.5 MBT50
MBT50-CZF25-105 3.0-25.0 CZF25 59 105 59.5 MBT50
MBT50-CZF25-165 3.0-25.0 CZF25 59 165 59.5 MBT50
MBT50-CZF32-105 3.0-32.0 CZF32 64.5 105 69 MBT50
MBT50-CZF32-165 3.0-32.0 CZF32 64.5 165 69 MBT50
MIT40-C12-120 2.0-12.0 C12 40 120 33 MIT40
MIT40-C12-90 2.0-12.0 C12 40 90 33 MIT40
MIT40-C16-120 2.0-16.0 C16 47.5 120 44 MIT40
MIT40-C16-60 2.0-16.0 C16 47.5 60 44 MIT40
MIT40-C16-90 2.0-16.0 C16 47.5 90 44 MIT40
MIT40-C20-120 2.0-20.0 C20 53 120 52 MIT40
MIT40-C20-80 2.0-20.0 C20 53 80 52 MIT40
MIT40-C20-90 2.0-20.0 C20 53 90 52 MIT40
MIT40-C25-120 3.0-25.0 C25 59 120 60 MIT40
MIT40-C25-85 3.0-25.0 C25 59 85 60 MIT40
MIT40-C32-105 3.0-32.0 C32 64.5 105 64 MIT40
MIT40-C32-120 3.0-32.0 C32 64.5 120 64 MIT40
MIT40-C32-95 3.0-32.0 C32 64.5 95 64 MIT40
MIT50-C12-105 2.0-12.0 C12 40 105 33 MIT50
MIT50-C12-165 2.0-12.0 C12 40 165 33 MIT40
MIT50-C16-105 2.0-16.0 C16 47.5 105 44 MIT50
MIT50-C16-165 2.0-16.0 C16 47.5 165 44 MIT50
MIT50-C16-200 2.0-16.0 C16 47.5 200 44 MIT50
MIT50-C20-105 2.0-20.0 C20 53 105 52 MIT50
MIT50-C20-165 2.0-20.0 C20 53 165 52 MIT50
MIT50-C20-200 2.0-20.0 C20 53 200 52 MIT50
MIT50-C25-105 3.0-25.0 C25 59 105 60 MIT50
MIT50-C25-135 3.0-25.0 C25 59 135 60 MIT50
MIT50-C25-165 3.0-25.0 C25 59 165 60 MIT50
MIT50-C32-105 3.0-32.0 C32 64.5 105 69 MIT50
MIT50-C32-120 3.0-32.0 C32 64.5 120 69 MIT50
MIT50-C32-135 3.0-32.0 C32 64.5 135 69 MIT50
MIT50-C32-165 3.0-32.0 C32 64.5 165 69 MIT50
MIT50-C32-90 3.0-32.0 C32 64.5 90 69 MIT50
MIT50-C42-120 3.0-42.0 C42 73-78 120 86 MIT50
MIT50-C42-135 3.0-42.0 C42 73-78 135 86 MIT50
MIT50-C42-165 3.0-42.0 C42 73-78 165 86 MIT50
MIT50-C42-95 3.0-42.0 C42 73-78 95 86 MIT50
NBT30-C12-55 2.0-12.0 C12 40 55 33 NBT30
NBT30-C16-55 2.0-16.0 C16 47.5 55 44 NBT30
NBT30-C20-65 2.0-20.0 C20 53 65 52 NBT30
NBT30-C20-75 2.0-20.0 C20 53 75 52 NBT30
NBT30-C25-75 3.0-25.0 C25 59 80 55 NBT30
NBT30-C32-100 3.0-32.0 C32 64.5 100 64 NBT30
NBT30-C32-90 3.0-32.0 C32 64.5 90 64 NBT30
NBT30-CZF20-100 2.0-20.0 CZF20 53 100 51.5 NBT30
NBT30-CZF25-100 3.0-25.0 CZF25 59 100 59.5 NBT30
NBT40-C12-120 2.0-12.0 C12 40 120 33 NBT40
NBT40-C12-65 2.0-12.0 C12 40 65 33 NBT40
NBT40-C12-90 2.0-12.0 C12 40 90 33 NBT40
NBT40-C16-120 2.0-16.0 C16 47.5 120 44 NBT40
NBT40-C16-60 2.0-16.0 C16 47.5 60 44 NBT40
NBT40-C16-90 2.0-16.0 C16 47.5 90 44 NBT40
NBT40-C20-105 2.0-20.0 C20 53 105 52 NBT40
NBT40-C20-120 2.0-20.0 C20 53 120 52 NBT40
NBT40-C20-70 2.0-20.0 C20 53 70 52 NBT40
NBT40-C20-90 2.0-20.0 C20 53 90 52 NBT40
NBT40-C25-120 3.0-25.0 C25 59 120 60 NBT40
NBT40-C25-70 3.0-25.0 C25 59 70 60 NBT40
NBT40-C25-90 3.0-25.0 C25 59 90 60 NBT40
NBT40-C32-105 3.0-32.0 C32 64.5 105 69 NBT40
NBT40-C32-120 3.0-32.0 C32 64.5 120 69 NBT40
NBT40-C32-85 3.0-32.0 C32 64.5 85 69 NBT40
NBT40-CZF20-105 2.0-20.0 CZF20 53 105 51.5 NBT40
NBT40-CZF20-120 2.0-20.0 CZF20 53 120 51.5 NBT40
NBT40-CZF25-105 3.0-25.0 CZF25 59 105 59.5 NBT40
NBT40-CZF25-120 3.0-25.0 CZF25 59 120 59.5 NBT40
NBT40-CZF32-120 3.0-32.0 CZF32 64.5 120 69 NBT40
NBT50-C12-105 2.0-12.0 C12 40 105 33 NBT50
NBT50-C12-135 2.0-12.0 C12 40 135 33 NBT50
NBT50-C12-165 2.0-12.0 C12 40 165 33 NBT50
NBT50-C16-105 2.0-16.0 C16 47.5 105 44 NBT50
NBT50-C16-135 2.0-16.0 C16 47.5 135 44 NBT50
NBT50-C16-165 2.0-16.0 C16 47.5 165 44 NBT50
NBT50-C20-105 2.0-20.0 C20 53 105 52 NBT50
NBT50-C20-135 2.0-20.0 C20 53 135 52 NBT50
NBT50-C20-165 2.0-20.0 C20 53 165 52 NBT50
NBT50-C20-180 2.0-20.0 C20 53 180 52 NBT50
NBT50-C25-105 3.0-25.0 C25 59 105 60 NBT50
NBT50-C25-135 3.0-25.0 C25 59 135 60 NBT50
NBT50-C25-165 3.0-25.0 C25 59 165 60 NBT50
NBT50-C32-105 3.0-32.0 C32 64.5 105 69 NBT50
NBT50-C32-120 3.0-32.0 C32 64.5 120 69 NBT50
NBT50-C32-135 3.0-32.0 C32 64.5 135 69 NBT50
NBT50-C32-165 3.0-32.0 C32 64.5 165 69 NBT50
NBT50-C32-200 3.0-32.0 C32 64.5 200 69 NBT50
NBT50-C32-250 3.0-32.0 C32 64.5 250 69 NBT50
NBT50-C32-300 3.0-32.0 C32 64.5 300 69 NBT50
NBT50-C32-400 3.0-32.0 C32 64.5 400 69 NBT50
NBT50-C32-500 3.0-32.0 C32 64.5 500 69 NBT50
NBT50-C32-90 3.0-32.0 C32 64.5 90 69 NBT50
NBT50-C42-105 3.0-42.0 C42 73-78 105 86 NBT50
NBT50-C42-120 3.0-42.0 C42 73-78 120 86 NBT50
NBT50-C42-135 3.0-42.0 C42 73-78 135 86 NBT50
NBT50-C42-165 3.0-42.0 C42 73-78 165 86 NBT50
NBT50-C42-200 3.0-42.0 C42 73-78 200 86 NBT50
NBT50-C42-250 3.0-42.0 C42 73-78 250 86 NBT50
NBT50-C42-300 3.0-42.0 C42 73-78 300 86 NBT50
NBT50-C42-400 3.0-42.0 C42 73-78 400 86 NBT50
NBT50-C42-500 3.0-42.0 C42 73-78 500 86 NBT50
NBT50-C42-90 3.0-42.0 C42 73-78 90 86 NBT50
NBT50-CZF20-105 2.0-20.0 CZF20 53 105 51.5 NBT50
NBT50-CZF20-165 2.0-20.0 CZF20 53 165 51.5 NBT50
NBT50-CZF25-105 3.0-25.0 CZF25 59 105 59.5 NBT50
NBT50-CZF25-165 3.0-25.0 CZF25 59 165 59.5 NBT50
NBT50-CZF32-105 3.0-32.0 CZF32 64.5 105 69 NBT50
NBT50-CZF32-165 3.0-32.0 CZF32 64.5 165 69 NBT50
NIT40-C12-120 2.0-12.0 C12 40 120 33 NIT40
NIT40-C12-65 2.0-12.0 C12 40 65 33 NIT40
NIT40-C12-90 2.0-12.0 C12 40 90 33 NIT40
NIT40-C16-120 2.0-16.0 C16 47.5 120 44 NIT40
NIT40-C16-60 2.0-16.0 C16 47.5 60 44 NIT40
NIT40-C16-90 2.0-16.0 C16 47.5 90 44 NIT40
NIT40-C20-105 2.0-20.0 C20 53 105 52 NIT40
NIT40-C20-120 2.0-20.0 C20 53 120 52 NIT40
NIT40-C20-80 2.0-20.0 C20 53 80 52 NIT40
NIT40-C20-90 2.0-20.0 C20 53 90 52 NIT40
NIT40-C25-105 3.0-25.0 C25 59 105 60 NIT40
NIT40-C25-120 3.0-25.0 C25 59 120 60 NIT40
NIT40-C25-85 3.0-25.0 C25 59 85 60 NIT40
NIT40-C32-105 3.0-32.0 C32 64.5 105 64 NIT40
NIT40-C32-120 3.0-32.0 C32 64.5 120 64 NIT40
NIT40-C32-95 3.0-32.0 C32 64.5 95 64 NIT40
NIT50-C12-105 2.0-12.0 C12 40 105 33 NIT50
NIT50-C12-135 2.0-12.0 C12 40 135 33 NIT50
NIT50-C12-165 2.0-12.0 C12 40 165 33 NIT50
NIT50-C16-105 2.0-16.0 C16 47.5 105 44 NIT50
NIT50-C16-135 2.0-16.0 C16 47.5 135 44 NIT50
NIT50-C16-165 2.0-16.0 C16 47.5 165 44 NIT50
NIT50-C20-105 2.0-20.0 C20 53 105 52 NIT50
NIT50-C20-135 2.0-20.0 C20 53 135 52 NIT50
NIT50-C20-165 2.0-20.0 C20 53 165 52 NIT50
NIT50-C20-180 2.0-20.0 C20 53 180 52 NIT50
NIT50-C25-105 3.0-25.0 C25 59 105 60 NIT50
NIT50-C25-135 3.0-25.0 C25 59 135 60 NIT50
NIT50-C25-165 3.0-25.0 C25 59 165 60 NIT50
NIT50-C32-105 3.0-32.0 C32 64.5 105 69 NIT50
NIT50-C32-120 3.0-32.0 C32 64.5 120 69 NIT50
NIT50-C32-135 3.0-32.0 C32 64.5 135 69 NIT50
NIT50-C32-165 3.0-32.0 C32 64.5 165 69 NIT50
NIT50-C32-85 3.0-32.0 C32 64.5 85 69 NIT50
NIT50-C42-105 3.0-42.0 C42 73-78 105 86 NIT50
NIT50-C42-135 3.0-42.0 C42 73-78 135 86 NIT50
NIT50-C42-165 3.0-42.0 C42 73-78 165 86 NIT50
NIT50-C42-95 3.0-42.0 C42 73-78 95 86 NIT50
